Hot Dip Galvanized vs Zinc Plated Bolts: Which Is Better for Outdoor Solar?

When you are sourcing bolts for outdoor solar mounting systems, the coating decision matters far more than the price difference suggests. A corroded fastener on a solar rack is a structural risk and a warranty headache. Two zinc finishes dominate — hot dip galvanized (HDG) and zinc plated (electro-galvanized) bolts — yet their coating thickness and outdoor service life differ by an order of magnitude.

Short answer: for outdoor solar structures with a 25-year design life, hot dip galvanized bolts are almost always the better choice, while zinc plated bolts suit sheltered or temporary use. This guide compares hot dip galvanized vs zinc plated bolts for outdoor solar and tells you what to specify in your next RFQ.

Why Bolt Corrosion Is a Real Problem in Outdoor Solar Projects

Utility and commercial solar plants stand for 25 years or more. Every joint — rail to clamp, clamp to module, bracket to foundation — depends on bolts that keep their clamping force through decades of sun, rain, and temperature swings. When a bolt corrodes and seizes, the connection loosens and structural integrity fails under wind or snow load. Because most sites sit in coastal, desert, or industrial zones where salt and humidity accelerate corrosion, corrosion resistant bolts for solar mounting are a minimum requirement, not an upgrade.

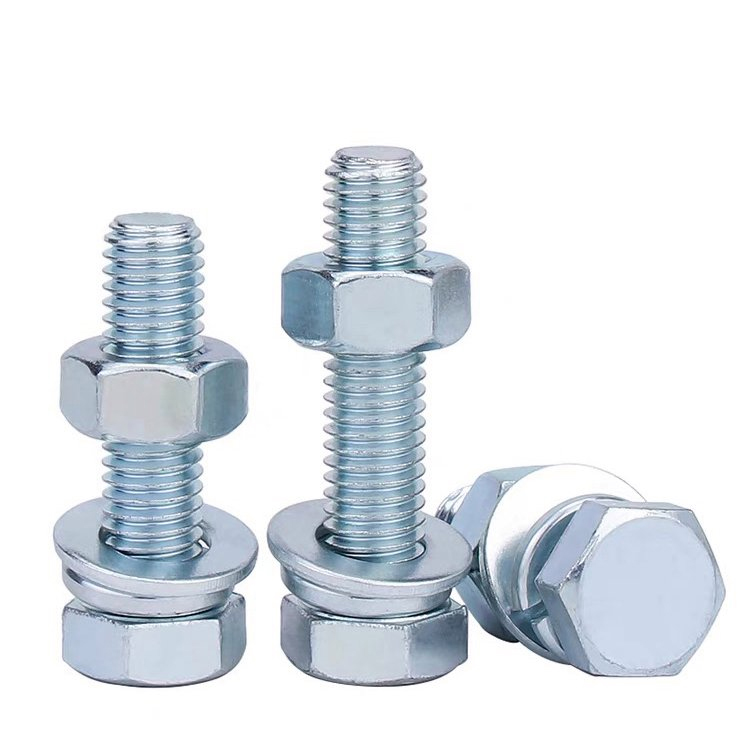

What Are Zinc Plated Bolts?

Zinc plated bolts — also called electro-galvanized bolts — receive a thin layer of pure zinc by electrodeposition. The coating is typically 5 to 12 microns thick per ASTM B633, with service classes from SC 1 (indoor) to SC 4 (very severe). Threads stay within standard tolerance and the finish is bright and uniform, which suits indoor, cosmetic, or high-volume use. The limitation is outdoor life. In ASTM B117 salt spray tests, standard plating shows red rust within 24 to 72 hours, and even premium passivated plating reaches roughly 100 to 720 hours. Outdoors, zinc plated bolts last only 2 to 5 years in rural air and months near the coast — too short for a 25-year solar rack.

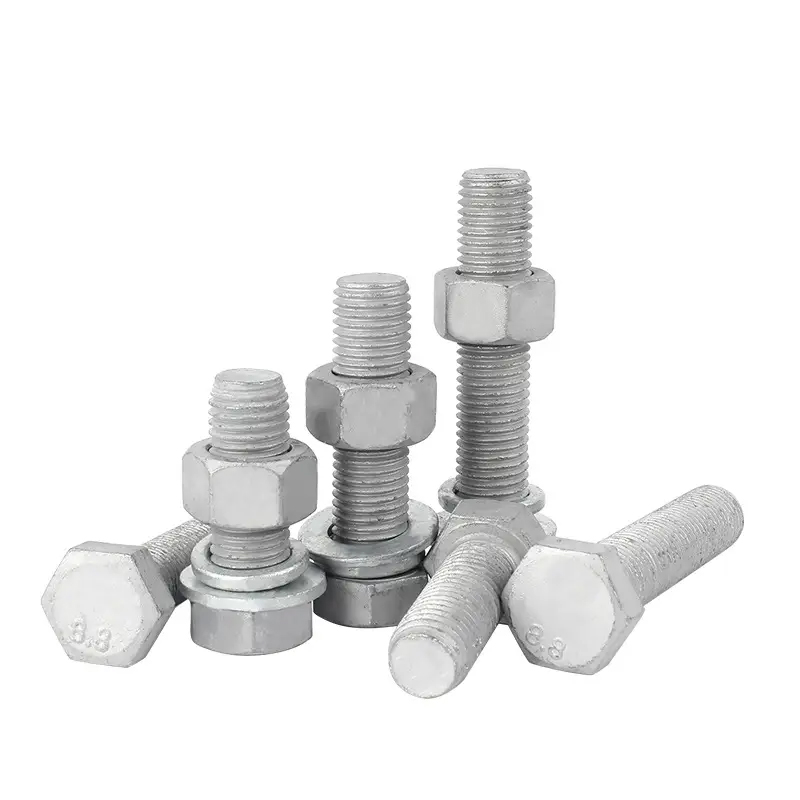

What Are Hot-Dip Galvanized Bolts?

Hot-dip galvanized (HDG) bolts are immersed in molten zinc at 445 to 465 °C, where zinc metallurgically bonds with steel to form a multi-layer zinc-iron alloy. The coating is 45 to 85 microns thick — 5 to 15 times thicker than plating — governed by ASTM A153 (hardware) and ASTM F2329 (bolts, screws, nuts), with ISO 1461 as the international equivalent. The payoff is durability: HDG bolts routinely pass 500 to 1,000 hours of salt spray before red rust, and in real exposure they last 50 to 75 years in rural air, 20 to 40 years industrially, and 20 to 30 years on the coast. Two trade-offs: HDG has a matte, spangled surface built for protection, not cosmetics, and the thick coating adds 50 to 100 microns to threads — always pair HDG bolts with oversize-tapped HDG nuts per ASTM F2329.

Hot Dip Galvanized vs Zinc Plated Bolts: Head-to-Head Comparison

The table below summarizes the engineering differences that drive the choice for outdoor solar.

Which Is Better for Outdoor Solar Racking?

For exposed outdoor solar — ground mounts, carports, trackers, ballasted roofs — hot dip galvanized bolts are the engineering default: their salt spray resistance and service life match the 25-year design life of a PV plant with essentially no maintenance. Zinc plating cannot meet that requirement outdoors.

One solar-specific nuance: most rails are extruded aluminum, and a galvanized bolt against an aluminum rail forms a galvanic couple, so zinc corrodes sacrificially to protect the rail. Manage this with stainless or sealing washers at the interface; in aggressive coastal or splash zones, step up to stainless steel A2-70/A4-80 bolts. Decision rule: zinc plated indoors only, HDG for standard outdoor mounting, stainless steel for splash-zone or permanently wet joints.

When Zinc Plated Bolts Still Make Sense

Zinc plating still fits indoor enclosures, junction boxes, switchgear, and temporary structures where humidity is controlled — it is clean, thread-accurate, and the lowest cost per piece. Just keep it out of exposed outdoor solar connections.

7 Tips When Specifying Bolts for Your Solar Project

1. Write the standard into your RFQ. Specify hot dip galvanized bolts per ASTM F2329 (or ASTM A153) instead of writing “galvanized” — that word alone can return zinc plated parts that fail outdoors.

2. Ask for the coating thickness. Require a report showing 45–85 µm on shank and threads; reject thin-coat parts below 40 µm for outdoor solar.

3. Require salt spray reports. Ask for ASTM B117 hours to red rust; HDG bolts for solar should show 500+ hours, ideally 1,000+.

4. Specify HDG nuts with oversize tapping. Standard nuts bind on galvanized threads and give false torque readings.

5. Manage the aluminum galvanic couple. Use stainless or sealing washers where steel bolts bear on aluminum rails, especially in humid or coastal sites.

6. Check embrittlement control on high-strength grades. Electroplated 10.9+ bolts need baking within 4 hours of plating; HDG needs controlled bath temperature.

7. Ask about white rust and storage. White zinc oxide on new HDG bolts is cosmetic, not structural — ventilated, dry storage prevents it.

Frequently Asked Questions

Q1. Do zinc plated bolts rust outdoors?

Yes, and quickly. With only 5 to 12 microns of zinc, the coating is gone within 2 to 5 years in rural air and faster near the coast. Zinc plated bolts are not recommended for exposed outdoor solar structures.

Q2. How long do hot dip galvanized bolts last outside?

Typically 50 to 75 years in rural air, 20 to 40 years industrially, and 20 to 30 years on the coast. Actual life depends on coating thickness and local corrosivity — this is why HDG matches the 25-year design life of solar plants.

Q3. What is the difference between hot dip galvanizing and zinc plating?

Hot dip galvanizing immerses the bolt in molten zinc at 445–465 °C for a 45–85 µm metallurgical alloy layer. Zinc plating electrodeposits a thin 5–12 µm pure zinc layer. HDG offers 10–20× the salt spray life at roughly 2–5× the cost.

Q4. Can galvanized bolts be used on aluminum solar rails?

Yes, with mitigation. Galvanized steel on aluminum forms a galvanic couple where zinc corrodes sacrificially. Use stainless or sealing washers, keep assemblies dry, and in aggressive coastal sites consider A2-70/A4-80 stainless bolts.

Q5. Are hot dip galvanized bolts suitable for coastal solar farms?

Yes. HDG bolts typically last 20 to 30 years in coastal atmospheric exposure, which fits most solar design lives. For splash-zone or permanently wet connections, stainless steel is safer.

Q6. Why do galvanized bolts need oversize nuts?

The thick HDG coating adds 50 to 100 microns to thread dimensions. Standard-tolerance nuts bind, damage the coating, and give false torque readings; HDG nuts are tapped oversize per ASTM F2329.

Q7. Which is cheaper: zinc plated or hot dip galvanized bolts?

Zinc plated is the lowest-cost option, but for a 25-year outdoor structure HDG is almost always cheaper over the full life cycle, because zinc plated parts would need replacement within a few years.

Q8. What standards should I cite when ordering galvanized bolts?

For hot-dip galvanized fasteners cite ASTM F2329 or ASTM A153 (hardware) and ISO 1461 internationally. For zinc plating cite ASTM B633. Listing the standard plus minimum coating thickness and salt spray hours removes all RFQ ambiguity.
